440-70 UHF Corner Reflector Antenna
SKU 440-70
Broadband, ideal for point-to-point applications
- Available in VHF, UHF, 700/800/900 MHz configurations
- Good directivity, very high front-to-back ratio
- Performance is constant throughout the band
- Rugged design to withstand harsh environmental conditions
- Ultra-low VSWR ratings
- Vertical or horizontal polarization
- DC ground for lightning protection
- Heavy-duty versions available
Description
Product available at the iBwave library. The corner reflector antennas are available in VHF, UHF, 700/800/900 MHz configurations. These antennas have an extremely good front-to-back ratio. They are broadband and are ideal for point-to-point applications. Performance is constant throughout the band.
- Each antenna has a rugged design to withstand harsh environmental conditions.
- Single or dual dipole mounted in the front of a 90º reflector, providing good directivity and a very high front-to-back ratio.
- These antennas have ultra-low VSWR ratings, and will not exceed 2.0:1 VSWR ratio with 0.5” (13 mm) of radial ice.
- The mounting hardware supplied allows either vertical or horizontal polarization.
- DC ground for lightning protection
- Heavy-duty versions also available.
Additional information
| Frequency Range, MHz | 406-512 |
|---|---|
| Nominal Gain, dBd | 9.5 |
| Bandwidth: 1.5:1 VSWR, MHz | 64 |
| Polarization | Vertical or Horizontal |
| Horizontal Beamwidth (Ver. Pol) | 60º |
| Vertical Beamwidth (Ver. Pol) | 45º |
| Front to Back, dBd | 25 |

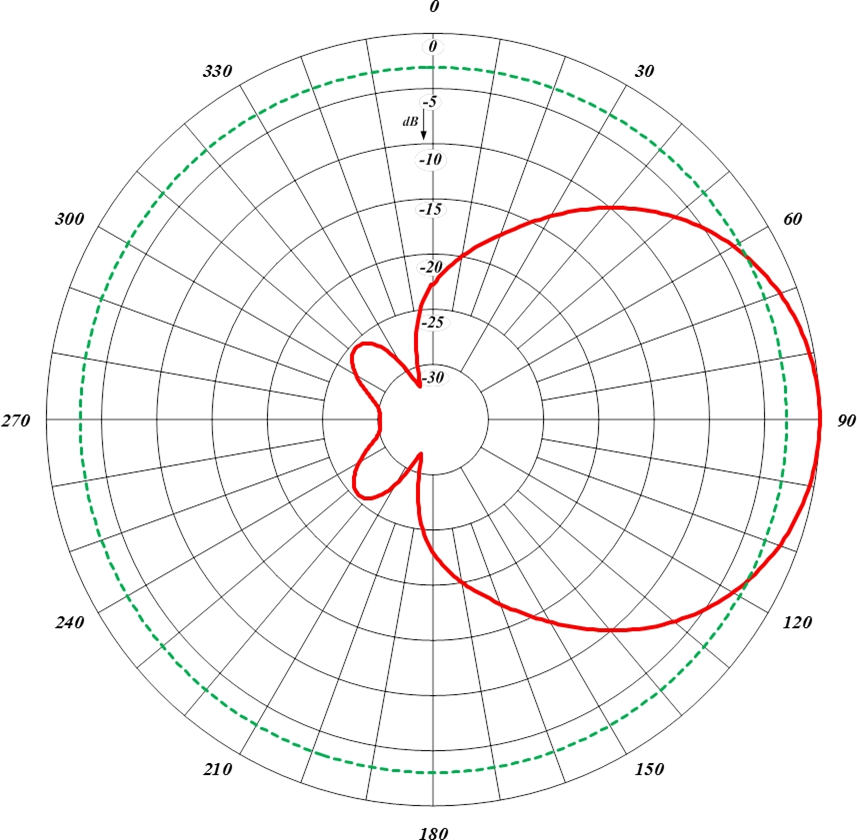

| Pattern | Directional |
| Power Rating, Watts | 100 |
| Nominal Impedance, Ohms | 50 |
| Lightning Protection | DC Ground |
| Standard Termination | N Male |
| Length, in (mm) | 30 (762) |
| Width, in (mm) | 50 (1270) |
| Weight, lbs (kg) | 22 (10) |
| Rated Wind Velocity: no ice, mph (km/h) | 125 (201) |
| Rated Wind Velocity: 0.5" (13 mm) Ice, mph (km/h) | 85 (137) |
| Lateral Thrust @ 100 mph wind, lbs (kg) | 97 (44) |
| Projected Area, ft² (m²) | 3.6 (0.34) |
| Mounting Information for Pipe Size O.D., in (mm) | 2.9 (74) Clamps included |
| Frequency Range | 406-512 MHz |
| Nominal Gain | 8-10 dBd |
| Antenna Pattern | directional |
Ordering Information
