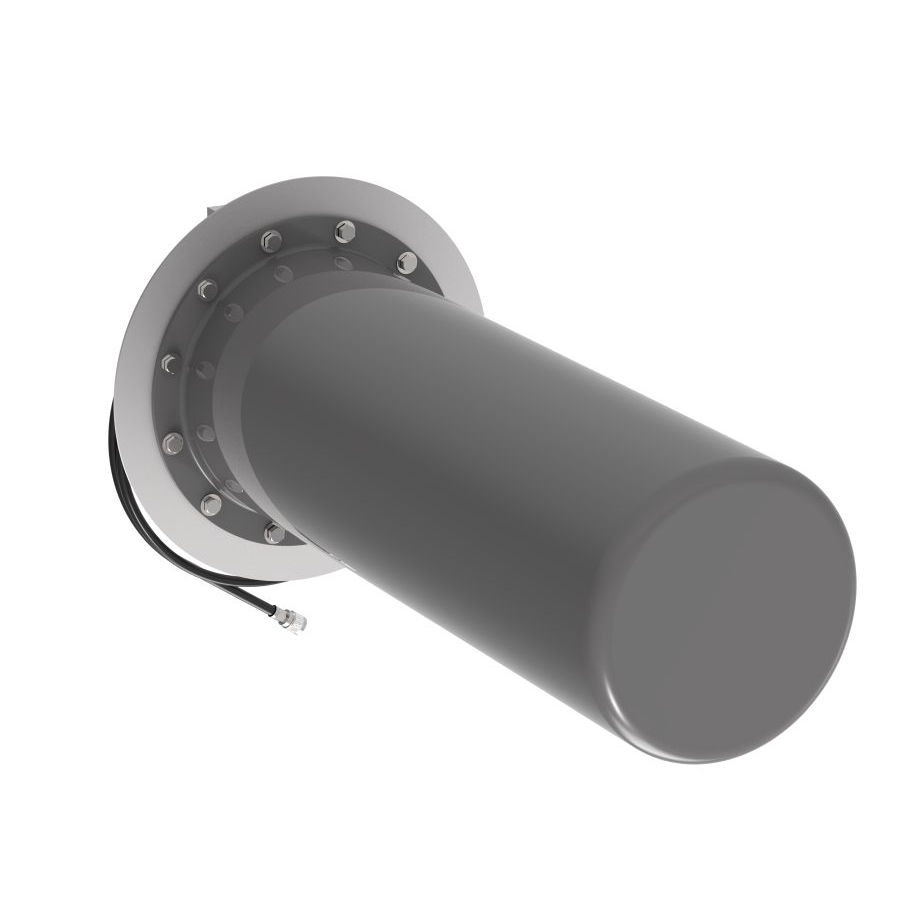

426-70-R Radome Yagi Antenna
SKU 426-70-R
Heavy-duty versions, part of our “Avalanche Series
- Rugged design to withstand harsh environmental conditions
- Available in UHF configuration (3 frequency splits)
- Vertical or horizontal polarization
- DC ground for lightning protection
Description
The radome Yagi antenna series are available in UHF and 700/800/900 MHz configurations. For UHF, we have two types of radome: fiberglass or PVC. In 700/800/900 MHz, only the PVC model is available. All of our antennas can be completely customized to your particular applications. • Each antenna has a rugged design to withstand extreme environmental conditions. • The mounting hardware supplied supports either vertical or horizontal polarization. • DC ground for lightning protection • The PVC enclosure is ½ inch-thick water main. • These are our heavy-duty versions, part of our “Avalanche Series”. Please contact a technical support technician for consultation.
Additional information
| Frequency Range, MHz | 406-512 |
|---|---|
| Nominal Gain, dBd | 10 |
| Bandwidth: 1.5:1 VSWR, MHz | 20 |
| Number of Elements | Loop Yagi |
| Polarization | Vertical or Horizontal |
| Horizontal Beamwidth (Ver. Pol) | 62º |
| Vertical Beamwidth (Ver. Pol) | 48º |
| Front to Back, dBd | 20 |
| Pattern | Directional |
| Power Rating, Watts | 250 |
| Nominal Impedance, Ohms | 50 |
| Lightning Protection | DC Ground |
| Standard Termination | N Female |
| Length, in (mm) | 30 (762) |
| Width, in (mm) | 16 (406) |
| Weight, lbs (kg) | 19 (8.6) |
| Radome Material | Fiberglass |
| Rated Wind Velocity: no ice, mph (km/h) | 120 (193) |
| Rated Wind Velocity: 0.5" (13 mm) Ice, mph (km/h) | 110 (177) |
| Lateral Thrust @ 100 mph wind, lbs (kg) | 61 (27.7) |
| Projected Area, ft² (m²) | 2.3 (0.21) |
| Mounting Information | 173-85 clamp set |
| Frequency Range | 406-512 MHz |
| Nominal Gain | 10-12 dBd, 8-10 dBd |
| Antenna Pattern | directional |
Ordering Information
406-430 MHz: 426-70-R*1
430-450 MHz: 426-70-R*2
450-470 MHz: 426-70-R*3
(2) Stacked: 2*426-70-R
(4) Stacked: 4*426-70-R
